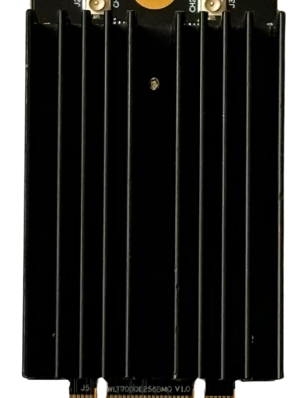

COMPEX WLTB7002E56 11be 2×2 M.2 B+M key, WiFi 7 5 + 6 GHz 801.11be dual band DBDC module, QCN 6274, Waikiki, PCIe 3.0

WiFi 7 (802.11BE) 2×2 MU-MIMO 5+6 GHz Dual Band Dual Concurrent WirelessModule  WLTB7002E56 M.2 key B+M

Description

WLTB7002E56 is a Dual-Band 5GHz + 6GHz WiFi 7 (802.11be) module. It is based on Qualcomm’s QCN6274, or QCN9274  ‘Waikiki’ series radio solution. This is a 2T2R (2×2) MU-MIMO 5GHz + 6GHz solution and is available in both commercial grade (QCN6274) and industrial grade (QCN9274).



WLTB7002E56 is capable of doing both AP and STA mode, in this case, doing backhaul and providing connectivity for clients at the same time. Built on a 3.3V design, the WLTB7002E56 ensures that the signal coverage is as wide as possible, in exchange for consuming slightly more power than a conventional Wi-Fi module. WLTB7002E56 is suitable for customers who require their product to provide wide signal coverage.



Supporting up to 4096-QAMs, WLTB7002E56 with its OFDMA feature is a perfect solution for Enterprise, Industrial, Cybersecurity, Transportation, and SMB applications or appliances. Multi-Link Operation (MLO) support reduces latency and helps to aggregate throughput, depending on device setup. Preamble puncturing supported by WLTB7002E56 improves spectral efficiency by allowing a Wi-Fi 7 access point (AP) to transmit a “punctured” portion of the spectrum channel if some of the channels are being used by legacy users. FIPS L2 is available as a feature uniquely on QCN9274, for customers who care most about the cryptographic protection of their product. Furthermore, with Compex acting as a value-added manufacturer, WLTB7002E56 is not restricted to working just on Qualcomm’s ecosystem, but also on 3rd party platforms such as Intel x86 and other ARM processors such as NXP and Marvell.



Standard
Chipset(s) Qualcomm QCN6274
Qualcomm QCN9274
Type of Connector(s) 2x U.FL Connectors
WiFi Interface PCIe 3.0
Wireless
Wireless 5GHz 802.11a/n/ac/ax/be, max 18dBm per chain
6GHz 802.11ax/be, max 18dBm per chain
5/6GHz 5GHz, 2×2 MU-MIMO, up to 4324Mbps
6GHz, 2×2 MU-MIMO, up to 5765Mbps
WLAN Frequency Range 5GHz: 5.180~5.925GHz
6GHz: 5.945~7.125GHz
Channel Spectrum Widths for WLAN 20/40/80/160/240MHz at 5GHz
20/40/80/160/320MHz at 6GHz
Power
Power Consumption 8.7W (Max)
Operating Voltage 3.3V
Certifications
USA FCC
EU Region CE RED
Canada IC
Environmental Compliances
USA REACH
EU Region
 RoHS
  • Recommended Linux Kernel 6.5 with the open source ath12k drivers.
Posted on by

Compex Wi-Fi 7 Dual-Band Dual-Concurrent Modules are CE, FCC and IC certified and Ready for the World

𝗖𝗲𝗿𝘁𝗶𝗳𝗶𝗲𝗱 𝗮𝗻𝗱 𝗥𝗲𝗮𝗱𝘆 𝗳𝗼𝗿 𝘁𝗵𝗲 𝗪𝗼𝗿𝗹𝗱.

Compex Wi-Fi 7 Dual-Band Dual-Concurrent Modules are CE, FCC and IC certified, bringing together global compliance and industry-leading performance. Available in Standard MiniPCIe form factor and M.2 variants, our Qualcomm-powered modules deliver reliable and high-performance wireless connectivity for markets worldwide.

✅Powered by Qualcomm’s QCN6224 / QCN6274 / QCN9274 “Waikiki” series chipsets
✅Comes with band options: 2.4+5GHz, 2.4+6GHz, 5+5GHz and 5+6GHz
✅Multi-Link Operation (MLO) for higher throughput, lower latency and improved reliability
✅Diplexer Design to reduce the need for multiple Wi-Fi antennas for transmission
✅Open Source Ath12k Support

📩 Reach out to us at info@524wifi dot net or com to explore how we can power your next project.

Posted on by

Ath11k Linux and OpenWRT driver for WiFi 6 QCN 9074 COMPEX WLE3002HX card

Hello Linux and OpenWRT users,

Last time we described  the reference guide how to run QCN 9024 / 9074 DR9074-Triband module with our ath11k driver on Rockship board with Ubuntu.

Today we share a guide how to make COMPEX WLE3002HX module work well under Linux 6.1.99 and OpenWRT

LINUX:

1 – Use Linux 6.1.99 kernel version and add ath11k related drivers

2 – Use QCN9074/hw1.0/2.7.0.1/WLAN.HK.2.7.0.1-01744-QCAHKSWPL_SILICONZ-1 firmware version

3 – Copy the firmware to the directory/lib/firmware/ath11k/QCN9074/hw1.0/directory, as shown in the following figure

4. Load the ath11k driver successfully, and the kernel prints as follows.

5. Use ifconfig to check that wlan0 has been recognized.

6.Scan external WiFi using the WPA_CLI scan and WPA_CLI scan_desult commands, only 5G band WiFi can be scanned

7.Connect to the scanned 5G frequency band WIFI for normal communication.

8. According to the previously provided document, replace the relevant firmware. The document content is as follows, please use serial console:

1.cd /lib/firmware
2.mkdir ath11k && cd ath11k
3.mkdir QCN9074 && cd QCN9074
4.mkdir hw1.0 && cd hw1.0
5.cp /directory/of/bdf.bin ./ (repeat this step for all above files)
6.ln -s WLE3002HX_SPF11_4_2G.bin board.bin (for first attempt on symbolic link)

To change board data files after first attempt:
Change to 2G: ln -s -f WLE3002HX_SPF11_4_2G.bin board.bin
Change to 5G: ln -s -f WLE3002HX_SPF11_4_5G.bin board.bin

Please replace DBF completely, the file name needs to be changed to the name in your system as described in this file.

Please contact us and we will sned these files to our customers by email.

9. According to the understanding, WLE3002HX_SFP11_4_2G.bin needs to be soft connected to

/lib/firmware/ath11k/QCN9074/hw1.0/board.bin

OpenWRT:

Ultimately what we did was:

1. Deactivate ath11k-firmware from my openwrt custom builds

2. Get the verified firmware version from git – WLAN.HK.2.7.0.1-01744-QCAHKSWPL_SILICONZ-1 e.g. 2 files amss.bin and m3.bin

3. Never download/use board-2.bin from qualcomm firmware

4. cp WLE3002HX5G.bin /lib/firmware/ath11k/QCN9074/hw1.0/board.bin (instead of symlinking)

bonus – cron to recreate the fw folder with files from backup location if missin

so the /lib/firmware/ath11k/QCN9074/hw1.0 folder contains only 3 files: amss.bin   board.bin  m3.bin

bonus – startup cron to recreate the fw folder with files from backup location if missing

This way the adapter works fine.

Thank you for reading. Hope that this can help you too.

Posted on by

Compex Systems Expands Dual-Band Wi-Fi 7 Family – Now with M.2 Variants!

Wi-Fi 7 is here, ushering in a new era of wireless connectivity that promises to transform the way we experience the internet. At Compex, we are excited to introduce the new M.2 variants to our popular dual-band Wi-Fi 7 module lineup. Meet the new WLTB7002E25 with a M.2 B+M Key and the WLTE7002E25 with a M.2 E Key — both designed to complement our existing WLE7002E25, which features the popular standard miniPCIe form factor. Together, these Wi-Fi 7 modules offer a comprehensive solutions with enhanced performance, flexibility and compatibility — all at competitive Wi-Fi 6 prices!

Powered by Qualcomm’s QCN6224, QCN6274 and QCN9274 Waikiki series radio chipsets, the WLE/WLTE/WLTB7002E25 are dual-band concurrent 2.4+5GHz Wi-Fi 7 (802.11be) modules, offering wider signal coverage by transmitting both bands concurrently, reducing latency with Multi-Link Operation (MLO) support, featuring OFDMA and 4096 QAMs. Delivering up to 20dBm per chain, these 2×2 MU-MIMO models are ideal for enterprise, industrial, cybersecurity, transportation and SMB applications.

What are the features of the Compex Wi-Fi 7 Modules WLE/WLTE/WLTB7002E25?

  • Dual-Band Dual-Concurrent Operation: Support both 2.4GHz and 5GHz bands simultaneously.
  • Variants for Easy Adoption: WLE7002E25 features a MiniPCIe interface with PCIe 3.0, while the WLTE7002E25 and WLTB7002E25 both have M.2 connectors, supporting E Key and B+M Key respectively.
  • MLO: All Compex Wi-Fi 7 modules support Multi-Link Operation, a key performance advantage of Wi-Fi 7, which increases throughput, lowers latency and enhances reliability.
  • Open Source Ath12k Support: Compatible with Qualcomm and third-party platforms such as Marvell, NXP and x86 platform.
Posted on by

Wi-Fi 7 The Next Generation of Connectivity from COMPEX wireless

Wi-Fi 7, also known as IEEE 802.11be, is the next-generation Wi-Fi standard that supports 2.4GHz, 5GHz, and 6GHz all three frequency bands. This advanced technology introduces innovative features that provide wider signal coverage, reduced latency and seamless connectivity. Wi-Fi 7 is set to revolutionize the way we connect, redefining the standards of wireless communication and rewriting your connectivity experiences. For Linux users, recommended is Linux krenel 6.5 and in kernel ath12k driver.

Unlock the Full Possibilities of Wi-Fi 7

320-bandwidth

320MHz Bandwidths

Wi-Fi 7 introduces 320MHz channel bandwidths, significantly expanding data transmission capacity. This allows for higher data rates and improved performance, ideal for bandwidth-intensive applications like streaming, gaming, and large file transfers.

4k-qam-3

4096 QAM

WiFi 7 uses 4K QAM to enhance data capacity, enabling higher speeds and efficiency. This improves performance for 4K streaming, online gaming, and large file downloads, delivering superior connectivity for modern applications.

mlo

Multi-Link Operation

Wi-Fi 7 debuts Multi-Link Operation (MLO), enabling devices to connect to the same access point across multiple channels and frequency bands simultaneously. MLO increases throughput, reduces latency, and enhances reliability.

Compex Wi-Fi 7 Solutions

The new Compex’s Wi-Fi 7 Dual-Band Dual-Concurrent Modules are designed to take your connectivity to the next level with seamless adoption, power efficiency and enhanced wireless performance. Ideal for enterprise, industrial, cybersecurity, transportation, and SMB applications or appliances, our Wi-Fi 7 Dual-Band Dual-Concurrent Modules set a new standard in performance and reliability.

Compex Wi-Fi 7 Solutions Product Matrix

WLE7000 Standard MiniPCIe Series

wle7002e25d

WLE7002E25

2×2 2.4+5GHz DBDC WiFi 7
with 2.4/5GHz Diplexer
MiniPCIe Interface with PCIe 3.0
wle7002e56_wifi-7

WLE7002E56

2×2 5+6GHz DBDC WiFi 7
with 5/6GHz Diplexer
MiniPCIe Interface with PCIe 3.0

WLT7000 M.2 Series

wlt7002e25d-e

WLTE7002E25

2×2 2.4+5GHz DBDC WiFi 7
with 2.4/5GHz Diplexer
M.2 E Key Interface with PCIe 3.0
wltb7002e25_wifi-7

WLTB7002E25

2×2 2.4+5GHz DBDC WiFi 7
with 2.4/5GHz Diplexer
M.2 B+M Key Interface with PCIe 3.0

WLW7000 High-Power M.2 Series

wlw7000e25

WLW7002E25

2×2 2.4+5GHz DBDC WiFi 7
M.2 E Key Interface with PCIe 3.0
wlw7000e25

WLW7002E56

2×2 5+6GHz DBDC WiFi 7
M.2 E Key Interface with PCIe 3.0
wlw7000e2e5e6

WLW7000E2

4×4 2.4GHz WiFi 7
M.2 E Key Interface with PCIe 3.0
wlw7000e2e5e6

WLW7000E5

4×4 5GHz WiFi 7
M.2 E Key Interface with PCIe 3.0
wlw7000e2e5e6

WLW7000E6

4×4 5GHz WiFi 7
M.2 E Key Interface with PCIe 3.0

USB HUB DAUGHTER BOARD for WPJ344 / 558 , 2*USB 2.0 + USB miniPCIe, compex

USB extension board for WPJ 344 and WPJ 558 boards – SALE – last one in stock

– 2 x USB 2.0 ports – 1 x miniPCIe-based USB 2.0 only interface (e.g. 3G modems, not additional radio card)



WPJ344 support an USB Extension board that provide additional
3x USB2.0 Ports and 1x MiniPCI-e slot, such as 3G/4G
Radio Module. Part no: USB HUB BOARD-1.00-ST

COMPEX Power over ethernet 3,3V for WPE54G/AG

AVAILABLE in stock !!!

COMPEX power over ethernet , POE -100 220, injektor and extraktor, 3,3V up to 100m, fce: remote power/local power.
The Compex Power Over Ethernet (POE-100-3.3) Kit is an accessory for the Compex Wireless Access Point, WPE54G. POE-100-3.3 allows the supply of operational power to a WPE54G via category 5 UTP cables. By deploying the POE-100-3.3, it removes the restriction of needing the Access Point to be close to a power supply. This means the Access Point can be used virtually anywhere. The POE-100-3.3 Kit consists of an injector unit and extractor unit and is an essential kit for outdoor or indoor wireless network deployment.
Power Input 12V DC, 1.5A
Power Output: 5V
Ethernet Connector: RJ-45
Ethernet Data Rate: 10/100 Mbps

SALE – COMPEX WPE72-7A Board, AR 7240 chipset, 32/8MB, 1PCIe slot, 2*RJ45, POE

part no: WPE72-7A 8MB NOR FLASH / 32MB DDR – includes indoor plastic casing – SALE – last 5 units in stock

Compex WPE72 is a small and compact wireless embedded platform based on Atheros AR7240 400MHz processor, features 1 Mini-PCIe slot, 1 Mini USB connector, 1 beeper, 2 Ethernet ports with both passive PoE support. This enables either port can be used as main port for data and power transmission. With integrated PoE cascade arrangement, the secondary Ethernet port is capable of driving another passive PoE device, which enables seamless IP Video Surveillance integration. The board supports Compex and OpenWRT firmware, Customization and Re-branding are also available. All these features make it suitable for various applications, accelerating new product time to market, reducing risk and cost.

Features

  • Atheros AR7240 400MHz Network Processor
  • 1 Mini PCIe slot
  • 2 Ethenet ports
  • Supports all Compex Mini PCIe radio modules
  • Supports Compex, OpenWRT firmware
  • Integrated passive Power-over-Ethernet
  • Integrated PoE cascade arrangement
  • Optional Remote hardware reset

product datasheet : http://wifi5.eu/dls/compex/wpe72_WPE72NX_MMJ5N26E/
CompexWRT Binary Firmware and Users Guide

COMPEX MMJ531LV 2,4GHz outdoor AP, 11dBi dual pol antenna, 20dBm high power, 802.11n

MIMO Junior MMJ531LV 7A03GFCE1664AR

64MB RAM / 16MB Flash ,WPJ531 board with on board radio 23DBM 2.4G ,2 X FE ports, 11dBi 2.4GHz dual pol antenna

MMJ531 is a high-performance Outdoor Access Point with integrated PoE. Using Qualcomm Atheros QCA9531 (650MHz)Processor, MMJ531 supports high-speed data transmission up to 300Mbps. MMJ342 is embedded with an integrated directional dual-polarization (vertical and horizontal) antenna supporting 2.4GHz (11dBi). The type of the antenna depends upon the order configuration.
Dual-polarization antenna provides good diversity coverage and better noise immunity. It has been integrated by high power radio to achieve longer range and higher throughput. The device is powerful, easy to handle, and also used in implementation over long distance by wireless ISP.

Product highlights

IEEE 802.11n compliant and backward compatible with 802.11b/g
Atheros 650MHz Networking Processor
Up to 26dBm output power(2.4GHz)
Data rates of up to 300Mbps in 802.11n 40 MHz channels
Built-in 11dBi@2.4GHz dual-polarization antenna
Compatible Third-party Firmware – OpenWRT

Download:

Datasheet :

MMJ531 Product Datasheet

Features

IEEE 802.11b/g/n compliant
• Atheros 650MHz Networking Processor AR9531
• 2.4G up to 26dBm aggregate power
• Up to 300Mbps physical data rates
• Enhanced sensitivity performance
• Built-in 11dBi@2.4GHz dual-polarization antenna
• Antenna Alignment Site Survey – LEDs/Buzzer
• Built-in 802.3af module can compatible with 802.3af/802.3at PoE switches and injectors
• Distance Adjustment for long range transmission
• Integrated Power-over-Ethernet
• Weatherproof casing
• 2 x RP-SMA Male Connector for External Antenna (optional)1
2.4GHz MIMO Junior Outdoor Access Point
Model: MMJ531

Applications
• 802.11b/g/n AP
• Point to Point / Point to MultiPoint
• CPE
